Drainage System Maintenance: Drains, Scuppers, Downspouts

Quick Answer: Commercial roof drainage clearance is the highest-leverage maintenance task on any Calgary flat roof. Clear drains, scuppers, and downspouts quarterly minimum, monthly during fall leaf drop. Standing water past 48 hours after rainfall indicates a drainage problem. Frozen drain lines during Chinook melt events cause some of Calgary's most expensive commercial roof failures. Annual drainage maintenance runs $0.02 to $0.05 per square foot.

A flat commercial roof is a designed water-management system. When drainage works, water exits within minutes of rainfall ending. When drainage fails, water becomes the single most damaging force on the membrane, the structure, and the building interior. This article walks through the specific maintenance tasks that keep the drainage system functional through every Calgary season.

At a Glance

Quick Facts:

• Minimum clearance frequency: Quarterly

• Fall leaf-drop frequency: Monthly (October through November)

• Annual drainage maintenance cost: $0.02 to $0.05 per sq. ft.

• Ponding threshold: Water persisting past 48 hours after rainfall

• Frozen line risk window: Chinook events with sub-zero overnight temperatures

• Failure cost ratio: Clearance vs reactive repair is roughly 1:20 to 1:50

Why Drainage Is the Highest-Leverage Task

A commercial roof drainage system has multiple components, each capable of failure.

Internal drains. Roof-deck-mounted drains with strainers, draining through interior piping to the building's storm system. Most common in larger commercial buildings.

Through-wall scuppers. Wall openings at the parapet that discharge water to exterior downspouts or splash blocks. Common in smaller commercial buildings and older construction.

Edge drainage. Gutters at the roof edge with downspouts to grade or storm connections. Less common on modern commercial flat roofs but found on some buildings.

Overflow drainage. Secondary drains or scuppers set above the primary level to prevent water buildup beyond design depth during heavy events. Code-required on most modern installations.

When any of these fail, water pools. Ponding water:

• Accelerates membrane degradation through chemical leaching and seam stress

• Adds dead load to the structure (one inch of standing water = 5.2 lbs per sq. ft.)

• Freezes during Chinook cycling, expanding into seams and penetrations

• Promotes biological growth that retains moisture between events

• Increases the risk of catastrophic interior damage when water finally finds a path through

A single major ponding event that pushes water past a seam typically costs $3,000 to $15,000 to repair, plus tenant business interruption. Annual drainage maintenance at $0.02 to $0.05 per square foot is the most cost-effective preventive measure available.

Drain Clearance Procedure

Internal roof drains are the most common drainage point on Calgary commercial buildings.

Step 1:

Visual inspection. Remove the strainer dome and inspect for visible debris, asphalt granule accumulation, or ice. Photograph the condition before clearing.

Step 2:

Strainer removal and cleaning. Lift the strainer dome, remove accumulated debris, and clean the dome itself. Replace any damaged or missing strainer components.

Step 3:

Drain bowl inspection. Check the drain bowl for cracks, sealant failure at the membrane termination, and clamping ring tightness. The membrane-to-drain seal is a common failure point.

Step 4:

Downstream flow test. Run water through the drain using a hose. Confirm free flow to the building's storm system. Listen for unusual sounds (gurgling, surging) that indicate partial downstream blockage.

Step 5:

Strainer reinstallation. Properly seat the strainer with all fasteners. Confirm no membrane contact with strainer edges that could cause friction wear.

Step 6:

Documentation. Photograph the cleared condition, note any repairs needed, and document any downstream flow concerns for further investigation.

Scupper Maintenance

Through-wall scuppers have different failure modes than internal drains.

Strainer or grate inspection. Most scuppers have a screen or grate at the opening to prevent large debris entry. Check for damage, missing components, and excessive debris accumulation.

Through-wall sealant. The seal where the scupper boot meets the membrane is a critical failure point. UV exposure, thermal cycling, and ice expansion all degrade this sealant. Annual visual check; resealing typically needed every 5 to 10 years.

Exterior outlet inspection. Where the scupper discharges, check for downspout connection integrity, splash block positioning, and grade direction. Water should drain away from the building base.

Overflow scupper check. Where overflow scuppers exist, confirm they're clear and unobstructed. These are emergency drainage; failures are typically not discovered until the primary system has already failed.

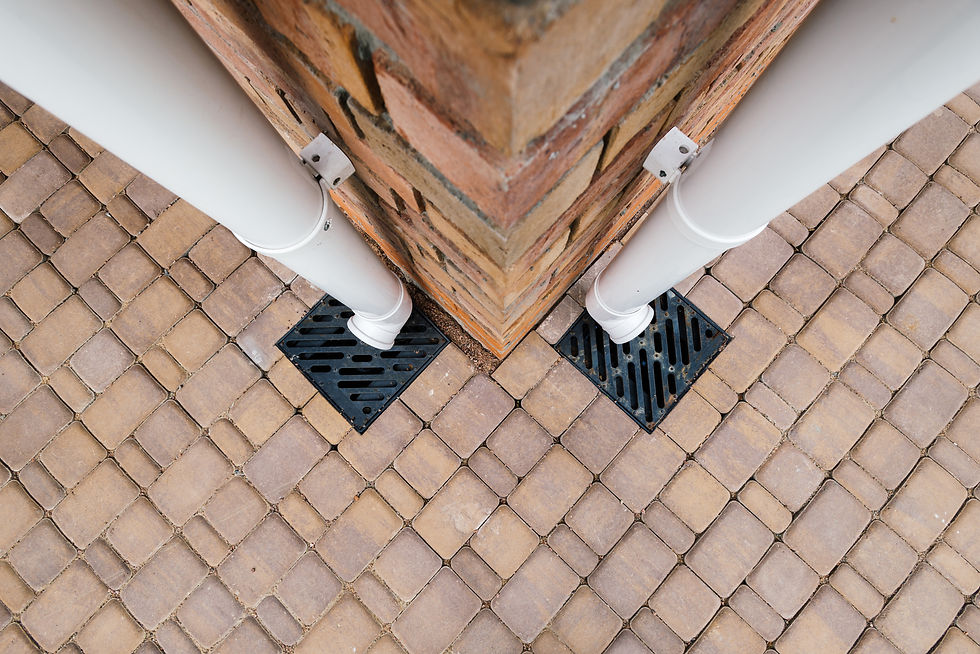

Downspout and Exterior Drainage

Cleared drains don't help if downspouts fail to carry water away.

Downspout inspection. Visual check for crushing damage, missing sections, leak points at seams, and proper securement to the wall. Calgary's wind events damage older downspouts faster than typical climates.

Outlet positioning. Discharge should direct water at minimum 1.8 metres from the building foundation. Splash blocks, extensions, or buried storm connections all work. Check that buried connections aren't backflowing into the foundation system.

Storm sewer connections. Where downspouts connect to municipal storm sewers via underground piping, periodic camera inspection (every 5 to 10 years) identifies blockages or pipe collapse.

Winter disconnection. Some Calgary commercial buildings disconnect downspout extensions during winter to allow snow piling. Reconnection at spring melt is critical; missing this step causes basement water issues during snowmelt.

Calgary-Specific Drainage Concerns

Three Calgary climate factors create drainage problems other markets don't have.

Chinook melt acceleration

A 25°C temperature swing in 6 hours can melt 30 cm of snow simultaneously across an entire roof. Drainage systems that handle typical rainfall events without issue can be overwhelmed by Chinook melt volume. Clear drains and adequate capacity are non-negotiable.

Frozen drain lines

Internal drain piping in unheated chases (parapet walls, exterior soffits) can freeze during sustained sub-zero periods. When the upper roof melts during the next Chinook, water has nowhere to go. Heat trace cable on drain leaders in vulnerable areas is a common Calgary commercial upgrade.

Ice damming at scuppers

Through-wall scuppers can develop ice plugs at the opening during freeze-thaw cycling. The ice plug grows over multiple cycles, preventing drainage. Quarterly winter visits should include scupper ice inspection.

Ponding Water Investigation

Standing water past 48 hours after a rainfall event is a signal, not a normal condition.

Possible causes:

• Blocked drainage (most common, fastest to fix)

• Structural deflection over time (especially common in older buildings or after equipment additions)

• Insulation compression under foot traffic or equipment

• Original installation slope inadequate to drains

• Drain placement that doesn't match low points in deflected structure

Investigation steps:

• Confirm drains and scuppers are clear by water testing

• Map the ponding area boundary and depth

• Check building structural history for any equipment additions, tenant alterations, or known deflection

• Evaluate insulation condition under the ponded area where possible

• Consider laser-level survey of the deflected area for severe cases

Solutions:

• Drain blockage clearance (most cases)

• Tapered insulation additions to redirect water (moderate cases)

• Structural reinforcement and new drainage (severe cases)

Documentation of ponding areas year over year identifies progressive structural issues before they become acute.

Drainage System Maintenance Cost

A typical Calgary commercial maintenance contract includes drainage clearance as a standard scope item.

Standalone clearance cost: $200 to $800 per visit depending on building size, drain count, and access complexity.

Annual cost on a contract basis: $0.02 to $0.05 per square foot for quarterly clearance and annual flow testing. For a 20,000 sq. ft. building, that's $400 to $1,000 per year specifically for drainage.

Reactive repair cost: $3,000 to $15,000 for a single ponding-related repair, plus interior damage from interior water events.

The cost ratio of preventive maintenance to reactive repair on drainage is roughly 1:20 to 1:50. Few maintenance line items pay back as reliably.

Frequently Asked Questions

How do I know if my drains are clogged?

Standing water on the roof past 48 hours after rainfall is the most obvious sign. Other indicators: water sounds in interior chase walls during rainfall, slow drain flow during water testing, visible debris above strainers, and ice accumulation around drains in winter.

Can I clear drains myself or do I need a contractor?

Strainer cleaning and surface debris removal is technically simple but requires roof access. The risk isn't the clearance itself; it's safe roof access, fall protection, and the inspection skills to catch developing problems while you're up there. Most property managers find contracted clearance more cost-effective than dedicating internal staff time.

What happens if a drain line freezes?

Water from upper-roof melt has nowhere to go. It pools at the drain, ponds across the surface, and eventually finds a path through seams, penetrations, or into the wall system. Frozen drain repair often requires interior access through ceiling or wall finishes to thaw the line; same-day response is essential.

How often do scupper sealants need replacement?

Typical service life is 5 to 10 years in Calgary's climate. UV exposure, thermal cycling, and ice expansion all degrade through-wall scupper sealants faster than interior drain sealants. Annual inspection catches early failure; full reseal as needed.

What about overflow drains?

Overflow drains or scuppers are code-required emergency drainage set above the primary level. They typically only activate during system failures. Quarterly inspection should confirm they're clear and unobstructed; their value only appears in emergency situations.
